Heyl & Patterson
This article examines the Fluid Bed Dryer offered by Heyl Patterson Thermal Processing. The system uses a forced stream of air or process gas to fluidize the material, promoting efficient heat transfer during drying. Designed for free-flowing materials, the dryer combines gentle product handling with a simple, low-maintenance configuration.
(https://www.hpprocess.com/)
About Heyl Patterson Thermal Processing
Founded in 1874, Heyl Patterson Thermal Processing manufactures thermal processing and bulk material handling equipment. The company provides custom-engineered equipment based on specific process and application requirements.
Its equipment portfolio includes dryers, coolers, and calciners for a range of industrial processing applications.
(https://www.hpprocess.com/equipment/)

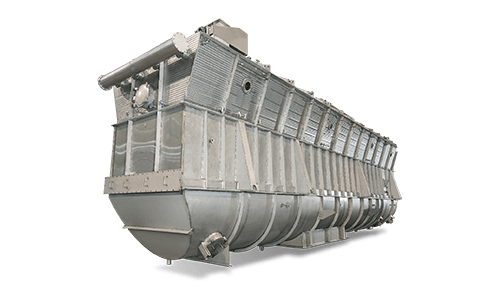

Key Features of the Heyl Patterson Fluid Bed Dryer
(https://www.hpprocess.com/equipment/dryers-coolers/fluid-bed-dryers-coolers/)
The Fluid Bed Dryer uses an upward stream of air or process gas to suspend solid particles, creating a fluidized bed that promotes efficient heat transfer between the drying medium and the material.
This fluidization provides relatively gentle product handling while supporting moisture removal. Because the system can operate without moving parts in the fluidization section, its mechanical design can also help simplify maintenance requirements.
| Dimensions | Up to 18 feet in diameter, or equivalent rectangular configurations |
|---|---|
| Materials Processed |
|
Heyl Patterson Fluid Bed Dryer Case Studies
No specific Fluid Bed Dryer case studies were found on the official website as of the date this information was reviewed.
Heyl Patterson Fluid Bed Dryer: Summary
Heyl Patterson Thermal Processing's Fluid Bed Dryer uses forced air or process gas to fluidize free-flowing materials and support efficient heat transfer during drying.
The fluidized-bed design provides gentle material handling, while the absence of moving parts in the fluidization section can help reduce mechanical complexity and maintenance requirements. The equipment is available in configurations up to 18 feet in diameter or in equivalent rectangular designs.
Success in material processing depends on the quality of your drying. Choosing a low-cost machine often leads to hidden losses—such as material breakage, inconsistent drying, or increased cleaning cycles—that erode your profits.
For precision materials like semiconductors, EV batteries, and pharmaceuticals, drying quality directly impacts yield. By prioritizing high-performance systems that ensure material integrity, you can eliminate these issues and significantly reduce long-term production costs.
This website introduces the ideal drying solutions to optimize your yield and profitability.
Heyl Patterson Thermal Processing: Company Information
| Company Name | Heyl Patterson Thermal Processing |
|---|---|
| Headquarters Address | 400 Lydia St. Carnegie, PA 15106, USA |
| Official Website | https://www.hpprocess.com/ |
